Click to enlarge

Description

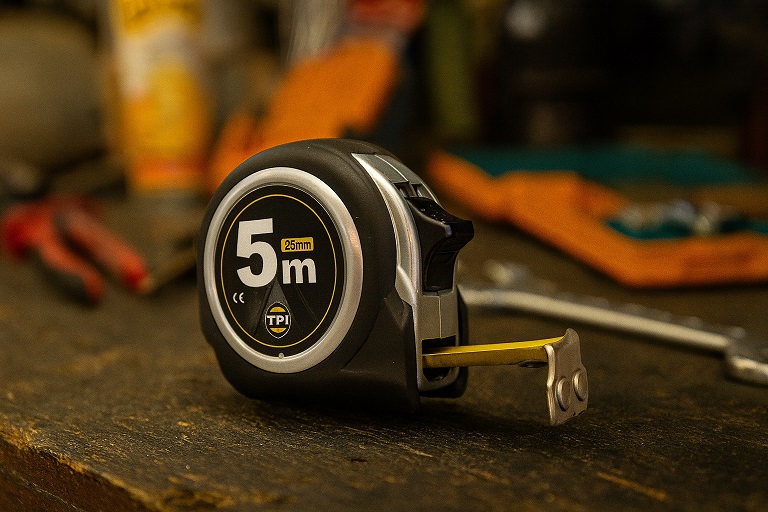

TV-INDUSTRIES 5MX25MM PRO MEASURING TAPE “LANCASTER”

REFERENCE SIZE BLADE DIAMETER WIDTH WEIGHT EAN-CODE HS-CODE
310.008Y 3mx16mm 50mm 30mm 125gr. 8718858991150 9017801000
310.009Y 5mx25mm 65mm 40mm 270gr. 8718858991167 9017801000
310.010Y 8mx25mm 75mm 35mm 410gr. 8718858991174 9017801000

TV-INDUSTRIES FEATURES & SPECIFICATIONS:
CE/MID approved, 2014/32/EU, Art. 17, Accuracy Class II

Size blade: length: 5 meter / Width: 25mm
Material blade: ca. 0,12mm yellow colored steel
Single sided black colored metric graduation

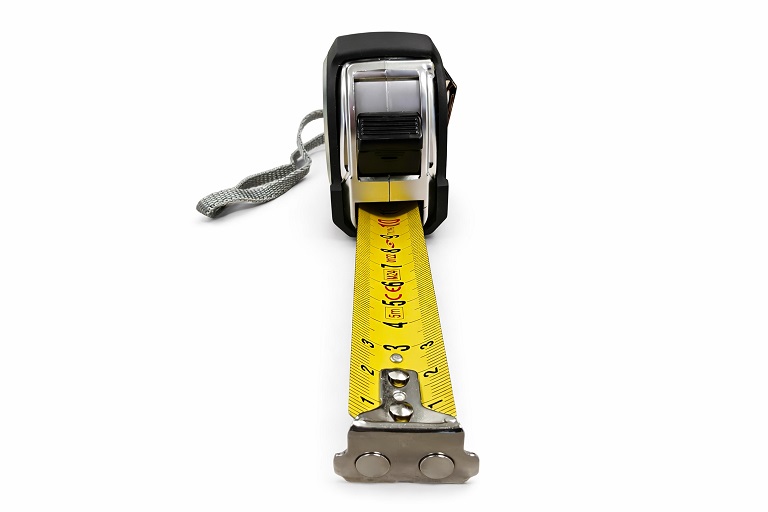

Large wide metal end-hook with 3 rivets
2 integrated strong magnets
High impact extreme compact grey colored ABS case
Integrated black colored TPR anti-slip grip & UV Coating
ABS ribbed thumb-lock & Shock absorbing devise

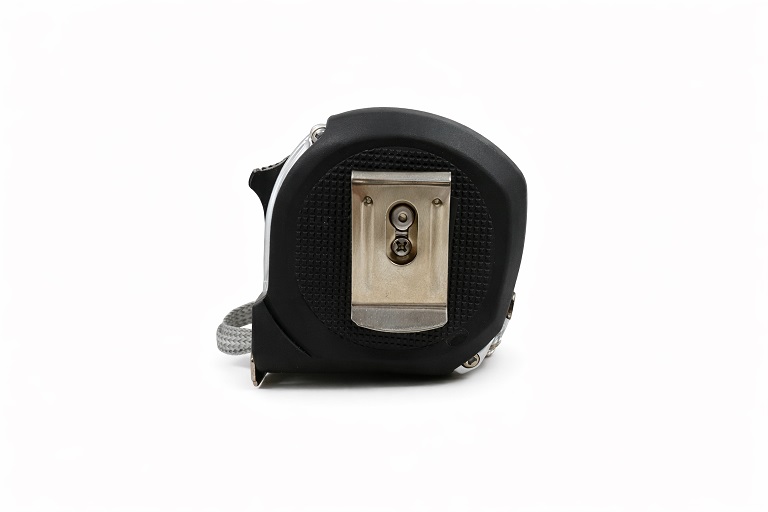

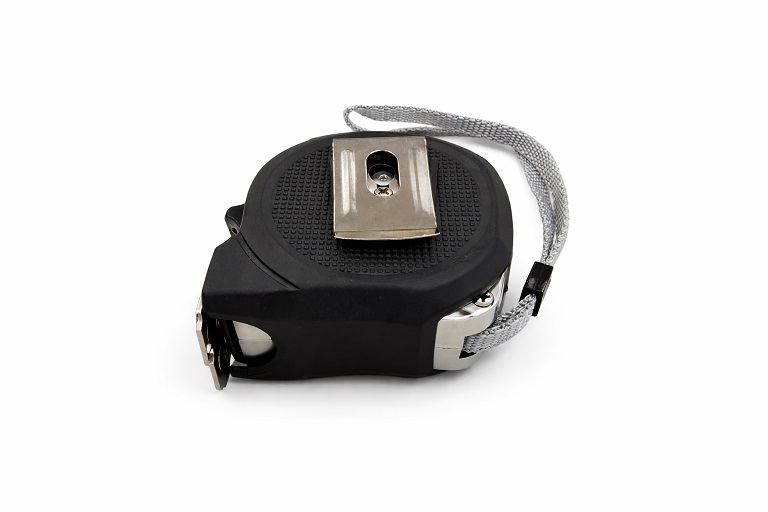

Heavy duty metal belt clip & Polyester wrist strap
Extra long blade stand out of ca. 220cm
ToolVizion EU Type examination certificate available upon request
Manufactured in: PRC
Individual packing: PP hanging card (8x12cm)
Packing material: PP (15 gr.)
Needed space on retail rack: Ca. 9x5x14cm

TV-INDUSTRIES LOGISTIC INFORMATION:
Size master carton: 41x32x30 cm. / Gr. Weight: 20 Kg.

Size inner carton: 20x15x10 cm. / Gr. Weight: 1,5 Kg.
Pieces per inner carton: 6
Pieces per master carton: 72
Pieces per euro pallet: 1.728
Pieces per 20″ container: 58.000

TV-INDUSTRIES RECOMMENDATIONS:
* Hold the tape measure firmly and retract the blade slowly
* Regularly inspect the blade for cracks, fading numbers or bent edges
* Clean the case, blade and hook on regular base
* Store in a dry area at room temperature

Maximum tolerance according class II accuracy, 2014/32/EU (MID) :
1m= ±2,3mm // 2m= ±3,6mm // 3m=±4,9mm
5m= ±7,5mm // 8m= ±11,1mm // 10m=±13,5mm

================================================
MOQ & DELIVERY TIME FOR PRIVATE LABEL: ON REQUEST
================================================

Imported into the EU by:
ToolVizion International BV
Steenplaetsstraat 6
2288 AA Rijswijk, The Netherlands
info@toolvizion.com

Home Products Measuring Compact measuring tapes 310.009Y
310.008Y
310.008Y
Back to products
310.010Y
310.010Y

310.009Y

TV-INDUSTRIES 5MX25MM PRO MEASURING TAPE “LANCASTER”

* Produced according Class II, Art. 17 of Directive 2014/32/EU
* The end hook can be attached to most metal surfaces
* Provides a comfortable and non-slip grip
* Ensures precise measurements with minimal deviation
* Smooth and safe blade retraction
* Optimum clear reading
* Reduces impact when retracting
* High dropping resistance
* Extreme durable
* Simply to attach to most (working) pants
* Extreme compact shape, easy to carry and store
* Will improve the productivity at the job site
* For professional and DIY workers
+ Available in the sizes:
– 3mx16mm: 310.008Y – Toolvizion
– 8mx25mm: 310.010Y – Toolvizion

TV-Industries PRO measuring tapes are combining accuracy, durability and ease of use, making them a highly indispensable measuring tool. Their reliability and efficiency ensure precise measurements and enhance the quality of work across a wide range of tasks.

Categories: Compact measuring tapes, Measuring Tags: compact measuring tape, measuring, tape measure, ToolVizion Industries
