Click to enlarge

Description

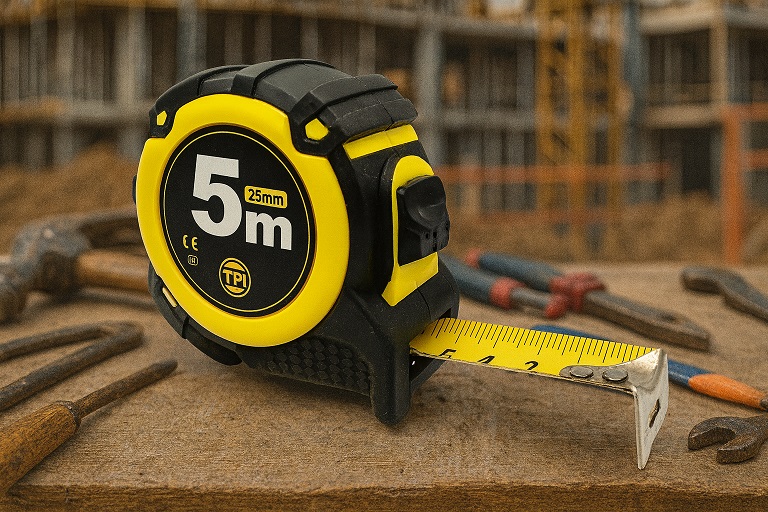

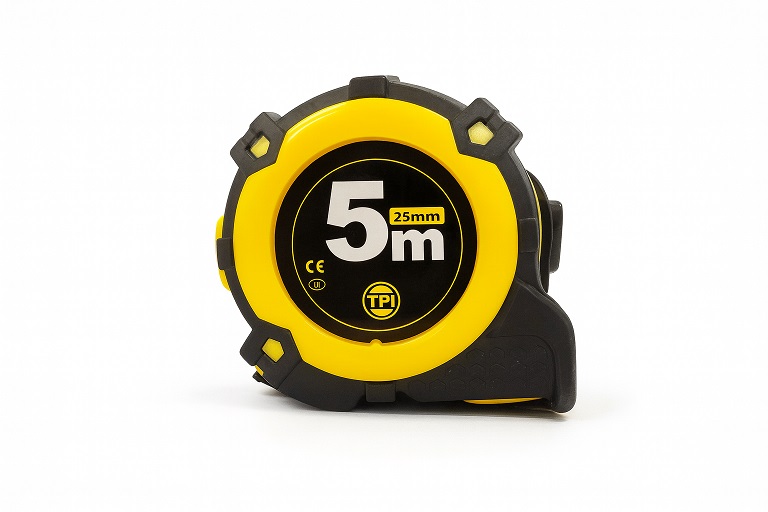

TV-INDUSTRIES 5MX25MM COMPACT MEASURING TAPE “NOTTINGHAM”

REFERENCE SIZE BLADE DIAMETER WIDTH WEIGHT EAN-CODE HS-CODE
310.017Y 3mx16mm 55mm 25mm 120 gr. 8718858992263 9017801000
310.018Y 5mx25mm 70mm 35mm 280 gr. 8718858992270 9017801000
310.019Y 8mx25mm 75mm 35mm 300 gr. 8718858992287 9017801000

TV-INDUSTRIES FEATURES & SPECIFICATIONS:
CE/MID approved, 2014/32/EU, Art. 17, Accuracy Class II
ToolVizion EU Type examination certificate available upon request
Size blade: length: 5 meter / Width: 25mm

Material blade: ca. 0,12 mm. thick yellow colored steel
Single sided black colored graduation
Yellow colored high impact ABS Case
Black colored ABS thumb & bottom lock
Black colored TPR anti-slip grip / Shock absorbing devise
Auto-lock blade returning system
Metal end-hook with 3 metal rivets
Metal belt clip / Polyester wrist strap
length blade stand out: Ca. 180 cm.
Manufactured in: PRC (China)
Packing: per 10 pcs. in display-box (26x17x9 cm.)
Packing material: Cardboard (155 gr.)

TV-INDUSTRIES LOGISTIC INFORMATION:
Size master carton: 35x28x28 cm. / Gr. Weight: 16Kg.
Size inner carton: 17x8x26 cm. / Gr. Weight: 2,5 Kg.
Pieces per display carton: 10
Pieces per master carton: 60
Pieces per euro pallet: 2.400
Pieces per 20″ container: 61.200

TV-INDUSTRIES RECOMMENDATIONS:
* Hold the tape measure firmly and retract the blade slowly
* Regularly inspect the blade for cracks and/or fading numbers
* Clean the case, blade and hook on regular base
* Store in a dry area at room temperature
* Dispose responsibility: follow local recycling/waste guidelines

Maximum tolerance according class II accuracy, 2014/32/EU (MID) :
1m= ±2,3mm // 2m= ±3,6mm // 3m=±4,9mm
5m= ±7,5mm // 8m= ±11,1mm // 10m=±13,5mm

================================================
MOQ & DELIVERY TIME FOR PRIVATE LABEL: ON REQUEST
================================================
Imported into the EU by:
ToolVizion International BV
Steenplaetsstraat 6
2288 AA Rijswijk, The Netherlands
info@toolvizion.com

Home Products Measuring Compact measuring tapes 310.018Y
338.507
338.507
Back to products
310.017Y
310.017Y

310.018Y

TV-INDUSTRIES 3MX16MM COMPACT MEASURING TAPE “NOTTINGHAM”

* Produced according Class, Art. 17 of Directive 2014/32/EU
* Bright, easy-to-read blade for quick measurements
* Ensures precise measurements with minimal deviation
* Ergonomic shape, provides a comfortable and non-slip grip
* Smooth and safe blade retraction & high dropping resistance
* Easy to carry and store, simply to attach to most (working) pants
* User-Friendly, will increase the productivity at the jobsite
* For Professional and DIY workers / Suitable for most industries & environments
+ Available in the sizes:
+ 5mx25mm: 310.018Y – ToolVizion + 8mx25mm: 310.019Y – ToolVizion

TV-Industries compact measuring tapes are combining accuracy, durability and ease of use, making them a highly indispensable measuring tool. Their reliability and efficiency ensure precise measurements and enhance the quality of work across a wide range of tasks.

Categories: Compact measuring tapes, Measuring, Products Tags: compact measuring tape, measuring, tape measure, ToolVizion Industries Brand: TV-Industries
