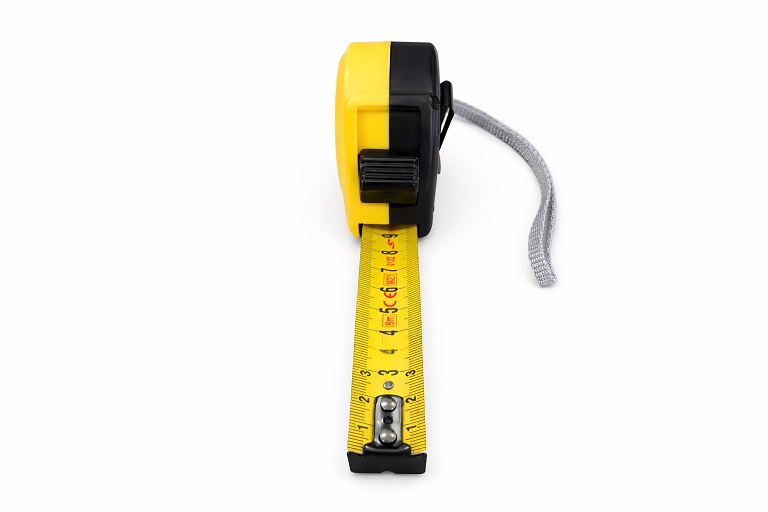

TV-INDUSTRIES 5MX25MM XTREME COMPACT MEASURING TAPE “ESSEX”

REFERENCE SIZE BLADE DIAMETER WIDTH WEIGHT EAN-CODE HS-CODE
310.039Y 5mx25mm. 55mm. 33mm. 220 gr. 8718858991693 9017801000
310.040Y 8mx25mm. 65mm. 37mm. 375 gr. 8718858991709 9017801000

TV-INDUSTRIES FEATURES & SPECIFICATIONS:
CE/MID approved, 2014/32/EU, Art. 17, Accuracy Class II
ToolVizion EU Type examination certificate available upon request
Size blade: length: 5 meter / Width: 25mm
Material blade: ca. 0,12mm thick yellow colored steel
Single sided black colored metric graduation

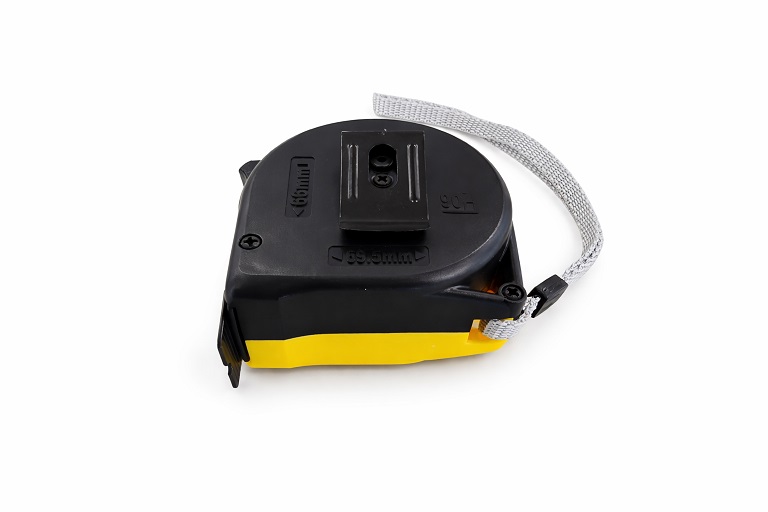

Black colored metal end-hook with 3 rivets
High impact yellow-black colored ABS case
ABS ribbed thumb-lock & Shock absorbing devise
Heavy duty metal belt clip & Polyester wrist strap
Long blade stand out of ca. 220 cm.
Manufactured in: PRC

Individual packing: Display-box (20x17x7 cm.)
Packing material: Corrugated Cardboard (125 gr.) & PE (5 gr.)

TV-INDUSTRIES LOGISTIC INFORMATION:
Size master carton: 36x22x21 cm. / Gr. Weight: 15 Kg.
Size inner carton: 20x17x7 cm. / Gr. Weight: 2 Kg.

Pieces per inner carton: 12
Pieces per master Carton: 72
Pieces per euro pallet: 2.592

Pieces per 20″ container: 121.000

TV-INDUSTRIES RECOMMENDATIONS:
* Hold the tape measure firmly and retract the blade slowly
* Regularly inspect the blade for cracks and/or fading numbers
* Clean the case, blade and hook on regular base
* Store in a dry area at room temperature

Maximum tolerance according class II accuracy, 2014/32/EU (MID) :
1m= ±2,3mm // 2m= ±3,6mm // 3m=±4,9mm
5m= ±7,5mm // 8m= ±11,1mm // 10m=±13,5mm

================================================
MOQ & DELIVERY TIME FOR PRIVATE LABEL: ON REQUEST

================================================

Imported into the EU by:
ToolVizion International BV
Steenplaetsstraat 6
2288 AA Rijswijk, The Netherlands
info@toolvizion.com

Home Products Measuring Compact measuring tapes 310.039Y
310.890Y
310.890Y
Back to products
310.040Y
310.040Y

310.039Y

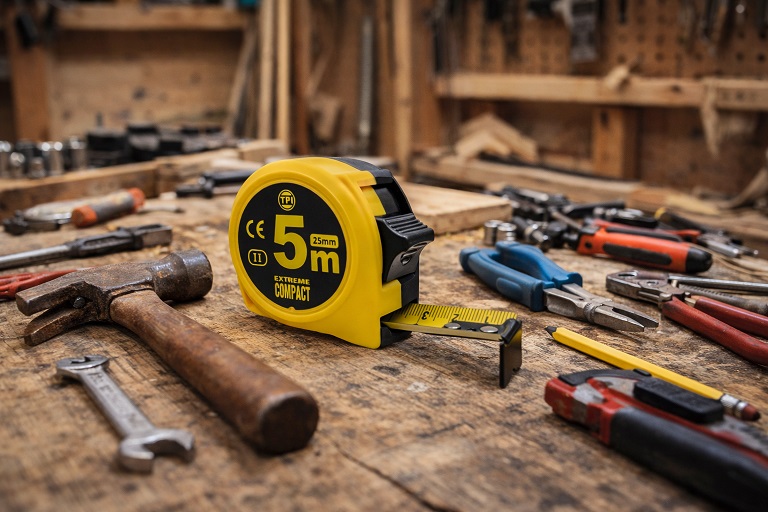

TV-INDUSTRIES 5MX25MM XTREME COMPACT MEASURING TAPE “ESSEX”

* Produced according Class II, Art. 17 of Directive 2014/32/EU (CE/MID)
* “Inside measuring function”: Flat base shape: “Measured size + 5,9 cm”
* Extra compact design, fits easy in most hands and pockets
* Optimum measuring comfort, clear reading and secure handling
* High dropping resistance / Simply to attach to most (working) pants
* Striking bi-colored design / Improves the productivity at the job site
* For Professional and DIY workers
+ Available in the size: 8mx25mm: 310.040Y – Toolvizion

TV-Industries extreme compact measuring tapes are reliable, accurate and durable measuring tools that meets professional standards. Its compact design, enhanced durability and user-friendly features make them indispensable in a wide range of environments.

Categories: Compact measuring tapes, Measuring, Products Tags: measuring, measuring tape, tape measure, ToolVizion Industries
