Description

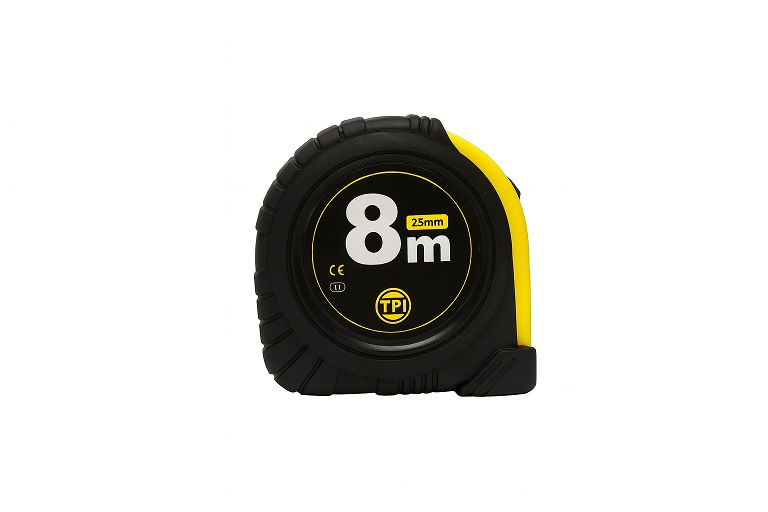

TV-INDUSTRIES 8MX25MM COMPACT MEASURING TAPE “OHIO”
| REFERENCE | SIZE BLADE | DIAMETER | WIDTH | WEIGHT | EAN-CODE | HS-CODE |
|---|---|---|---|---|---|---|
| 310.244Y | 3mx16mm. | 55mm. | 30mm. | 110 gr. | 8714612047316 | 9017801000 |
| 310.248Y | 5mx19mm. | 65mm. | 32mm. | 180 gr. | 8714612047323 | 9017801000 |
| 310.249Y | 5mx25mm. | 65mm. | 40mm. | 245 gr. | 8714612059364 | 9017801000 |
| 310.252Y | 8mx25mm. | 75mm. | 40mm. | 355 gr. | 8714612047330 | 9017801000 |
TV-INDUSTRIES FEATURES & SPECIFICATIONS:
CE/MID approved blade, 2014/32/EU, Art. 17, Accuracy Class II
ToolVizion EU Type examination certificate available upon request
Size blade: length: 8 meter / Width: 25mm. / Bland stand out: ca. 230 cm.
Material blade: ca. 12mm thick yellow colored Steel / Metric graduation
High impact yellow colored ABS case / Black colored TPR anti-slip shield
Metal end-hook with 2 metal rivets / ABS ribbed thumb-lock
Shock absorbing devise / Metal belt clip / Polyester wrist strap
TV-INDUSTRIES PACKING & LOGISTIC INFORMATION:
Packed: Per 6 pcs. in box / Material: Cardboard
Size per master carton: 51x31x19 cm. / Gr. Weight: 23 Kg.
Size per inner carton: 15x10x17 cm. / Gr. Weight: 2 Kg.
Pieces per inner carton 6 / Pieces per master carton: 60
Pieces per euro pallet: 2.040 / Pieces per 20″ container: 55.600
Manufactured in: PRC (China)
TV-INDUSTRIES RECOMMENDATIONS:
* Hold the tape measure firmly and retract the blade slowly
* Regularly inspect the blade for cracks and/or fading numbers
* Clean the case, blade and hook on regular base
* Store in a dry area at room temperature
* Dispose responsibility: follow local recycling/waste guidelines
Maximum tolerance according class II accuracy, 2014/32/EU (MID) :
1m= ±2,3mm // 2m= ±3,6mm // 3m=±4,9mm
5m= ±7,5mm // 8m= ±11,1mm // 10m=±13,5mm
=============================================
MOQ & DELIVERY TIME FOR PRIVATE LABEL: ON REQUEST
=============================================
Imported into the EU by:
ToolVizion International BV
Veraartlaan 4, 2288 AA Rijswijk
the Netherlands / info@toolvizion.com
310.252Y

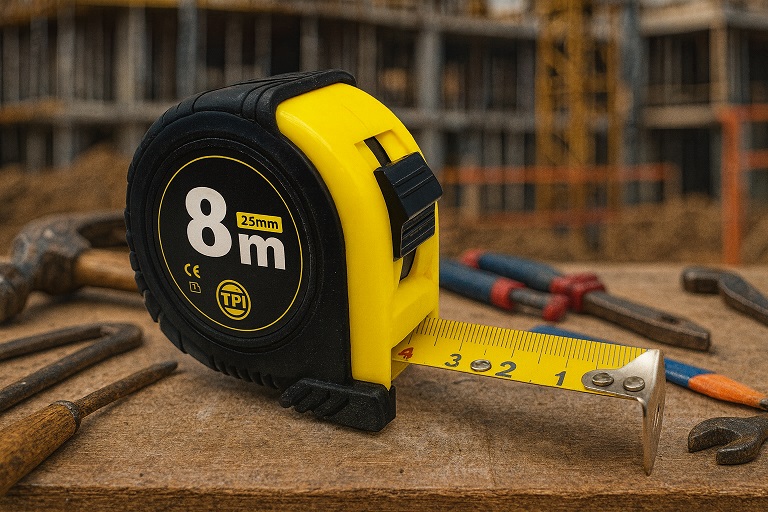

TV-INDUSTRIES 8MX25MM COMPACT MEASURING TAPE “OHIO”
* Produced according Class, Art. 17 of Directive 2014/32/EU
* Ensures precise measurements with minimal deviation
* Smooth blade retraction / Shock-resistant / Stable / User-friendly
* Efficient / Comfortable / Multi-purpose / Accurate / Safe / PRO
* Ergonomic / Durable / Clearly readable / Reliable / DIY
+ Available in TV-Industries sizes/models: 3mx16mm: 310.244Y – ToolVizion
– 5mx19mm: 310.248Y – ToolVizion – 5mx25mm: 310.249Y – ToolVizion
TV-Industries compact measuring tapes are reliable, accurate and durable measuring tools that meets professional standards. Their compact designs, enhanced durability and user-friendly features make them indispensable to be used in a wide range of environments.
* All TV-Industries measuring tape models: Compact measuring tapes – ToolVizion
* TV-Industries measuring tape concept: Measuring Tapes – ToolVizion
