Description

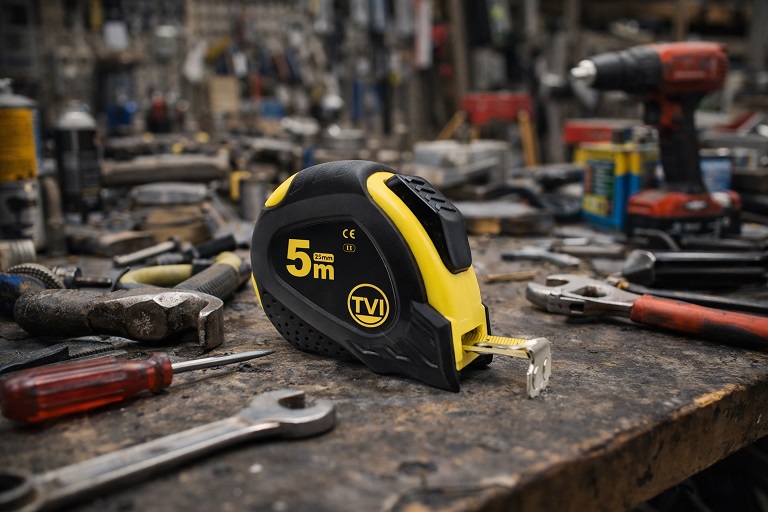

TV-INDUSTRIES HEAVY DUTY 5MX25MM COMPACT MEASURING TAPE “DERBY”
| REFERENCE | SIZE BLADE | DIAMETER | WIDTH | WEIGHT | EAN-CODE | HS-CODE |
|---|---|---|---|---|---|---|
| 310.340Y | 3mx16 mm. | 60 mm. | 30mm. | 135 gr. | 8714612068786 | 9017801000 |
| 310.342Y | 5mx19 mm. | 65 mm. | 30mm. | 210 gr. | 8714612068793 | 9017801000 |
| 310.344Y | 5mx25 mm. | 67 mm. | 40mm. | 265 gr. | 8714612068809 | 9017801000 |
| 310.346Y | 8mx25 mm. | 75 mm. | 45mm. | 380 gr. | 8714612068816 | 9017801000 |
TV-INDUSTRIES FEATURES & SPECIFICATIONS:
CE/MID approved, 2014/32/EU, Art. 17, Accuracy Class II
ToolVizion EU Type examination certificate available upon request
Size blade: length: 5 meter / Width: 25mm / Blade stand out: ca. 200 cm.
Material blade: ca. 0,12mm yellow colored steel / Metric graduation
High impact yellow colored ABS case / Auto-lock blade returning system
ABS thumb-lock/ Shock absorbing devise
Integrated ABS bottom stop / TPR anti-slip grip
Metal end-hook with 2 rivets and 2 magnets
Chrome colored metal belt clip & polyester wrist strap
TV-INDUSTRIES PACKING & LOGISTIC INFORMATION:
Individual packing: Hanging-card (10×14 cm.) / Material: Cardboard (12 gr.)
Needed space on retail rack: ca. 11x5x15 cm.
Size master carton: 40x31x24 cm. / Gr. Weight 13 Kg.
Size inner carton: 30x19x8 cm. / Gr. Weight: 2 Kg.
Pieces per inner carton: 12 / Pieces per master carton: 48
Pieces per euro pallet: 2.016 / Pieces per 20″ container: 42.800
Manufactured in: PRC (China)
TV-INDUSTRIES RECOMMENDATIONS:
* Hold the tape measure firmly and retract the blade slowly
* Regularly inspect the blade for cracks and/or fading numbers
* Clean the case, blade and hook on regular base
* Store in a dry area at room temperature
* Dispose responsibility: follow local recycling/waste guidelines Maximum tolerance according class II accuracy, 2014/32/EU (MID) :
1m= ±2,3mm // 2m= ±3,6mm // 3m= ±4,9mm
5m= ±7,5mm // 8m= ±11,1mm // 10m= ±13,5mm
==================================================
MOQ & DELIVERY TIME FOR PRIVATE LABEL: ON REQUEST
==================================================
Imported into the EU by:
ToolVizion International BV
Veraartlaan 4, 2288 AA Rijswijk
the Netherlands / info@toolvizion.com
Individual packing: Hanging-card (10×14 cm.) / Material: Cardboard (12 gr.)
Needed space on retail rack: ca. 11x5x15 cm.
Size master carton: 40x31x24 cm. / Gr. Weight 13 Kg.
Size inner carton: 30x19x8 cm. / Gr. Weight: 2 Kg.
Pieces per inner carton: 12 / Pieces per master carton: 48
Pieces per euro pallet: 2.016 / Pieces per 20″ container: 42.800
Manufactured in: PRC (China)
TV-INDUSTRIES RECOMMENDATIONS:
* Hold the tape measure firmly and retract the blade slowly
* Regularly inspect the blade for cracks and/or fading numbers
* Clean the case, blade and hook on regular base
* Store in a dry area at room temperature
* Dispose responsibility: follow local recycling/waste guidelines Maximum tolerance according class II accuracy, 2014/32/EU (MID) :
1m= ±2,3mm // 2m= ±3,6mm // 3m= ±4,9mm
5m= ±7,5mm // 8m= ±11,1mm // 10m= ±13,5mm
==================================================
MOQ & DELIVERY TIME FOR PRIVATE LABEL: ON REQUEST
==================================================
Imported into the EU by:
ToolVizion International BV
Veraartlaan 4, 2288 AA Rijswijk
the Netherlands / info@toolvizion.com
310.344Y
TV-INDUSTRIES HEAVY DUTY 5MX25MM MEASURING TAPE “DERBY”
* Produced according Class, Art. 17 of Directive 2014/32/EU
* Ensures precise measurements with minimal deviation
* Smooth blade retraction / Shock-resistant / Stable / User-friendly
* Efficient / Comfortable / Multi-purpose / Accurate / Safe / PRO
* Ergonomic / Durable / Clearly readable / Reliable / DIY
+ Available in TV-Industries sizes/models: 3mx16mm: 310.340Y – Toolvizion
– 5mx19mm: 310.342Y – Toolvizion – 8mx25mm: 310.346Y – Toolvizion
TV-Industries heavy duty measuring tapes deliver the perfect combination of accuracy, durability, high shock resistance, and ease of use. Built for reliability, they ensure precise measurements and consistently enhance the quality of every job.
