Click to enlarge

Description

TV-INDUSTRIES PRO 3MX16MM COMPACT WINDOW MEASURING TAPE “DURHAM”

REFERENCE SIZE BLADE DIAMETER WIDTH WEIGHT EAN-CODE HS-CODE
310.014Y 3mx16mm. 70mm. 25mm.  113 gr. 8718858992539 9017801000

TV-INDUSTRIES FEATURES & SPECIFICATIONS:
CE/MID approved, 2014/32/EU, Art. 17, Accuracy Class II
ToolVizion EC Type examination certificate available upon request
Size blade: length: 3 meter / Width: 16mm
Material blade: ca. 0,12mm thick yellow colored steel

Black colored metric blade graduation
Orange colored high impact ABS case with TPR soft-grip

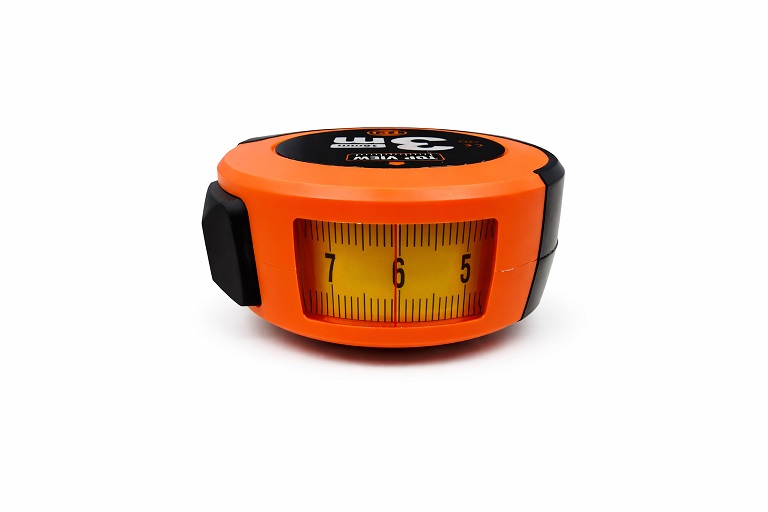

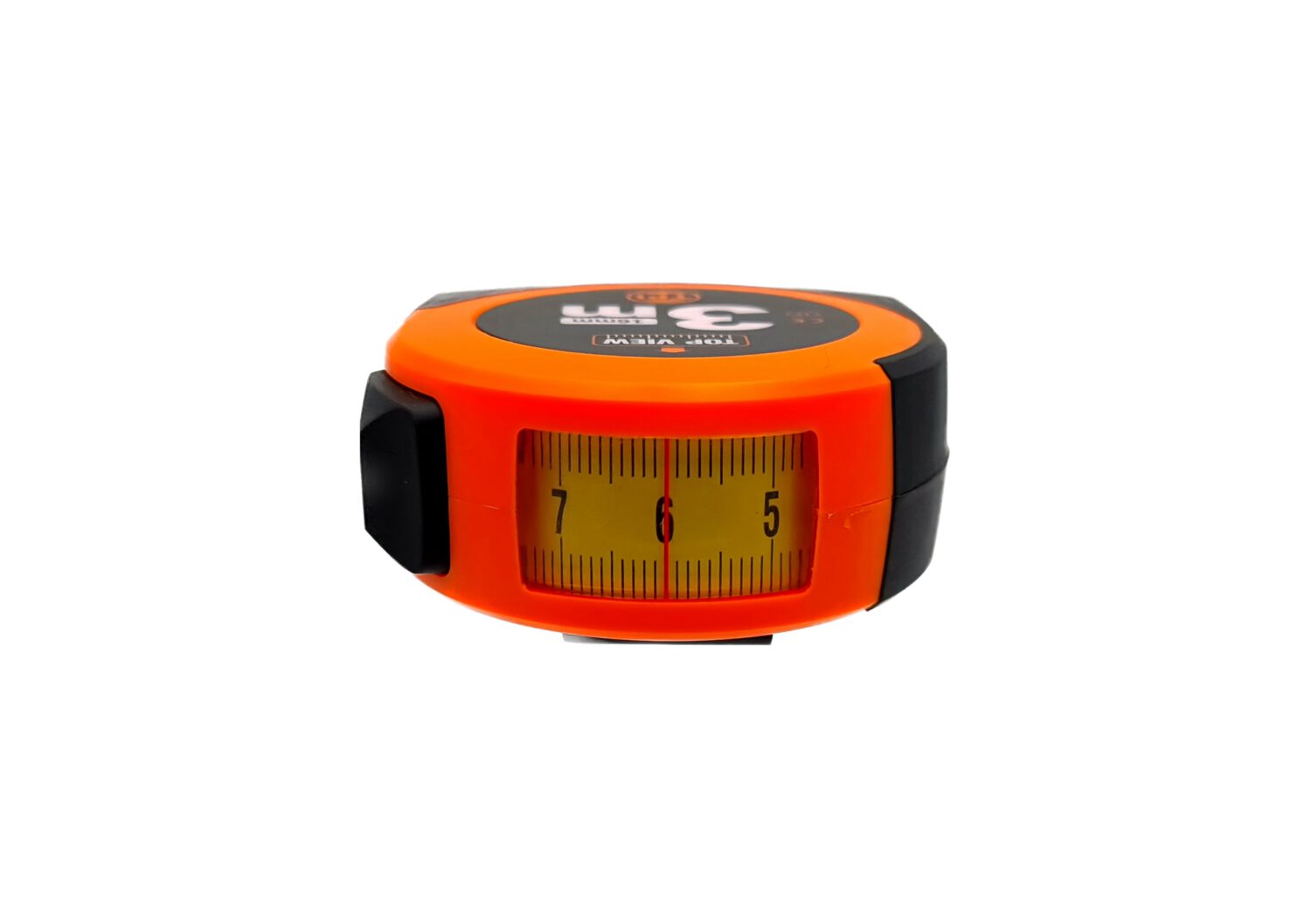

Integrated top side transparent reading-window

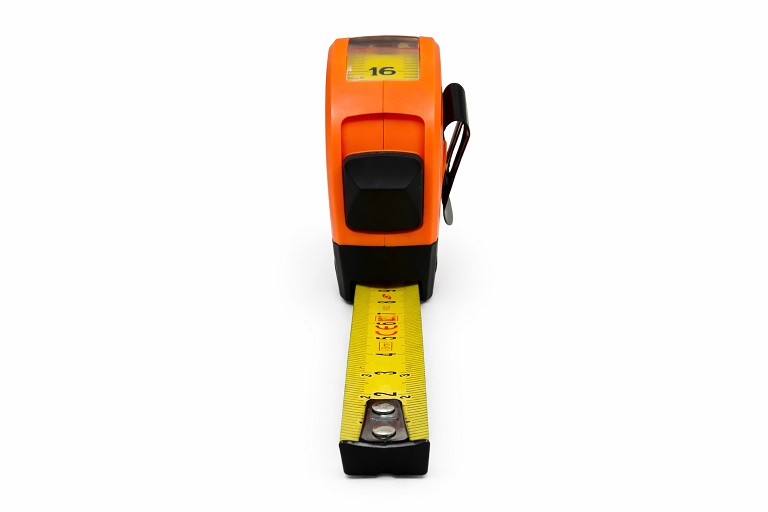

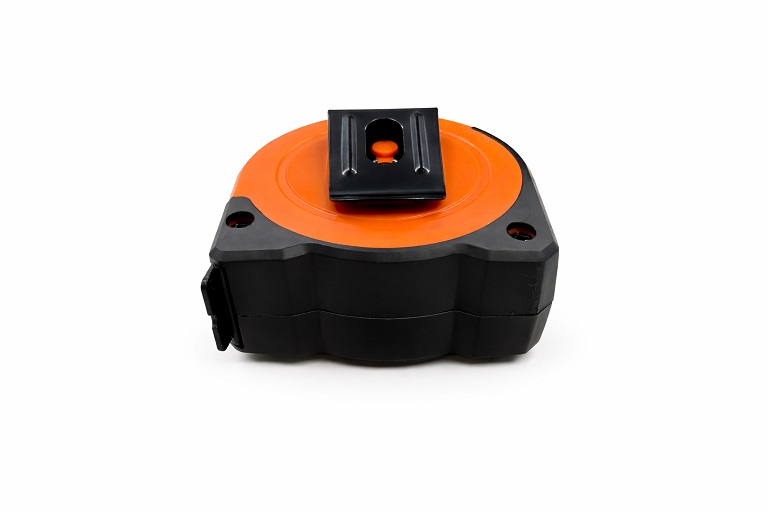

Metal black end-hook with 2 rivets & backside belt clip
Black colored ABS thumb-lock & shock absorbing devise
Length blade stand-out: ca. 90 cm.
Manufactured in: PRC
Individual packing: White cardboard box (20x13x7 cm.)

TV-INDUSTRIES LOGISTIC INFORMATION:
Size master carton: 28x21x31 cm. / Gr. Weight: 11 Kg.

Size inner carton: 20x13x7 cm. / Gr. Weight: 1,0 Kg.
Pieces per inner carton: 10
Pieces per master carton: 80
Pieces per euro pallet: 3.456
Pieces per 20″ container: 104.000

TV-INDUSTRIES RECOMMENDATIONS:
* Hold the tape measure firmly and retract the blade slowly
* Regularly inspect the blade for cracks or fading numbers
* Clean the case, blade and hook on regular base
* Store in a dry area at room temperature

Maximum tolerance according class II accuracy, 2014/32/EU (MID) :
1m= ±2,3mm // 2m= ±3,6mm // 3m=±4,9mm
5m= ±7,5mm // 8m= ±11,1mm // 10m=±13,5mm

================================================
MOQ & DELIVERY TIME FOR PRIVATE LABEL: ON REQUEST
================================================

Imported into the EU by:
ToolVizion International BV
Steenplaetsstraat 6
2288 AA Rijswijk, The Netherlands
info@toolvizion.com

Home Products Measuring Compact measuring tapes 310.014Y
318.014
318.014
Back to products
318.020
318.020

310.014Y

TV-INDUSTRIES PRO 3MX16MM WINDOW MEASURING TAPE  “DURHAM”

* Produced according Class II, Art. 17 of Directive 2014/32/EU
* Ensures precise measurements with minimal deviation
* Ideal for “inside” measurements & fast and clear reading
* High dropping resistance / simply to attach to most (working) pants
* Provides a comfortable non-slip grip / smooth and safe blade retraction
* Easy to carry and store / will increase the productivity
* For professional & DIY workers

TV-Industries window compact measuring tapes are combining precision, speed, and comfort in one smart design. It eliminates guesswork, saves time, and ensures professional results, even in the most demanding measuring situations. The clear top-view display means faster readings, fewer mistakes, and higher productivity, making it the perfect choice for anyone who value accuracy and efficiency.
