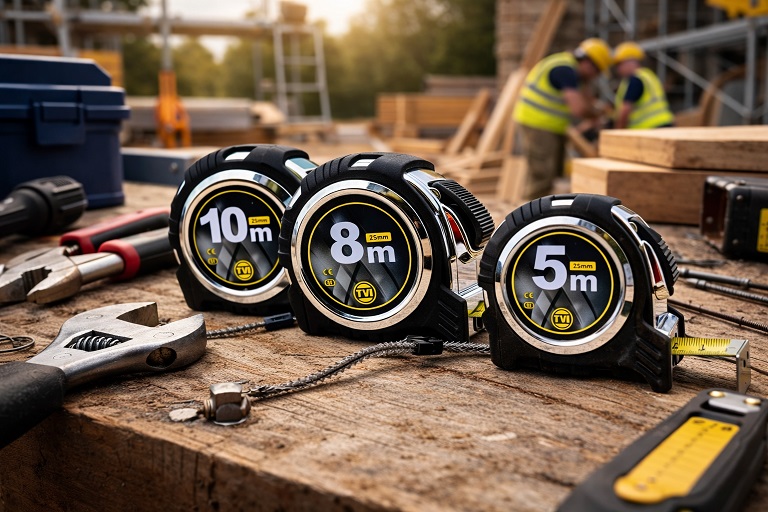

TV-INDUSTRIES PRO 5MX25MM COMPACT MEASURING TAPE “NEWPORT”

TV-INDUSTRIES FEATURES & SPECIFICATIONS:
CE/MID approved, 2014/32/EU, Art. 17, Accuracy Class II
ToolVizion EU Type examination certificate available upon request
Size blade: length: 5 meter / Width: 25mm
Material blade: 0,14mm thick yellow colored steel
Additional  nylon solid transparent blade film on first 120 cm.
Double sided black colored metric blade graduation
Large wide metal end-hook with 4 rivets
High impact Chrome colored ABS case & UV coating
Integrated black colored TPR anti-slip grip
Auto-lock blade returning system
ABS ribbed thumb-lock & Shock absorbing devise
Heavy duty metal belt & Polyester wrist strap
Length blade stand out: Ca. 170 cm.
Manufactured in: PRC (China)
Individual packing: per 12 pcs. in display-box (24x20x7 cm.)
Packing material: Cardboard (80 gr.)

TV-INDUSTRIES LOGISTIC INFORMATION:
Size master carton: 26x22x30 cm. / Gr. Weight: 17 Kg.
Size inner carton: 24x20x7 cm. / Gr. Weight: 4 Kg.
Pieces per inner carton: 12
Pieces per master carton: 48
Pieces per euro pallet: 2.316
Pieces per 20″ container: 73.000

TV-INDUSTRIES RECOMMENDATIONS:
* Hold the tape measure firmly and retract the blade slowly
* Regularly inspect the blade for cracks and/or fading numbers
* Clean the case, blade and hook on regular base
* Store in a dry area at room temperature
* Dispose responsibility: follow local recycling/waste guidelines

Maximum tolerance according class II accuracy, 2014/32/EU (MID) :
1m= ±2,3mm // 2m= ±3,6mm // 3m=±4,9mm
5m= ±7,5mm // 8m= ±11,1mm // 10m=±13,5mm

================================================
MOQ & DELIVERY TIME FOR PRIVATE LABEL: ON REQUEST
================================================
Imported into the EU by:
ToolVizion International BV
Steenplaetsstraat 6
2288 AA Rijswijk, The Netherlands
